WATER WELLS LEVEL MEASUREMENT
KELLER Pressure level sensors are used to measure static and dynamic levels of water in wells in a reliable and precise manner.
Static and dynamic level measurement
Why measure well water levels?
Level measurement is of paramount importance, as it provides information on the behaviour of the well and pumping equipment. Suitable measurement and data analysis enable proactive identification of the need for preventive maintenance due to deterioration of the grooved well casing. The greater the incrustation, the less water can enter the well, causing water levels to fall. This reduces the efficiency and effectiveness of the pumps, which in turn increases electricity costs.
Level measurement in conjunction with flow rate measurement also provides information on the status of the pumping equipment and its operational efficiency. Such measurements thus make it possible to diagnose wear and tear on the pumping equipment before it fails completely, and timely maintenance in general helps avoid high repair costs and follow-up expenditure.
Pumping equipment generally cannot tolerate immersion in water. The measurements taken by a pressure sensor can be used as a basis for programming a frequency converter via a PLC (programmable logic controller). In this manner, the pumping equipment protects itself against level fluctuations by regulating the discharge flow.
Installation of a sheath or hose into which a sensor can be inserted ensures correct operation and cable longevity. In the case of relative pressure sensors, it is also advisable to mount a desiccant drying tube at the end of the reference tube to prevent moisture from entering the inside of the sensor.

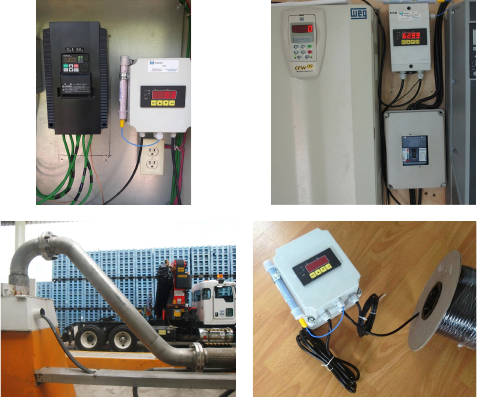

EV06 digital display
Measurement with data loggers and remote transmission
KELLER Pressure offers a wide range of level sensors with a data logger function. This setup allows measurement results to be stored in sensors for long periods of time, which makes it possible to analyse the behaviour of the well over time and thus detect problems more quickly.
The ARC1 is a refinement of the tried-and-tested GSM-2 remote transmitter. The ARC1 makes it possible to transmit measurement results and alerts in accordance with individual criteria, which reduces the cost and complexity of data collection and monitoring, even while ensuring an immediate response in the event of an emergency. The ARC1 transmits data via SMS, e-mail, FTP or LoRa.
Wells with embedded groove
