Series 23SY-En-H2
Sketch
- Pressure Ranges
- Accuracy
- Total Error Band
- Interfaces
- 0…4 to 0…1000 bar
- ± 0,25 %FS
- ± 0,7 %FS @ -10…80 °C
- 4…20 mA, 0…10 V
Product Description

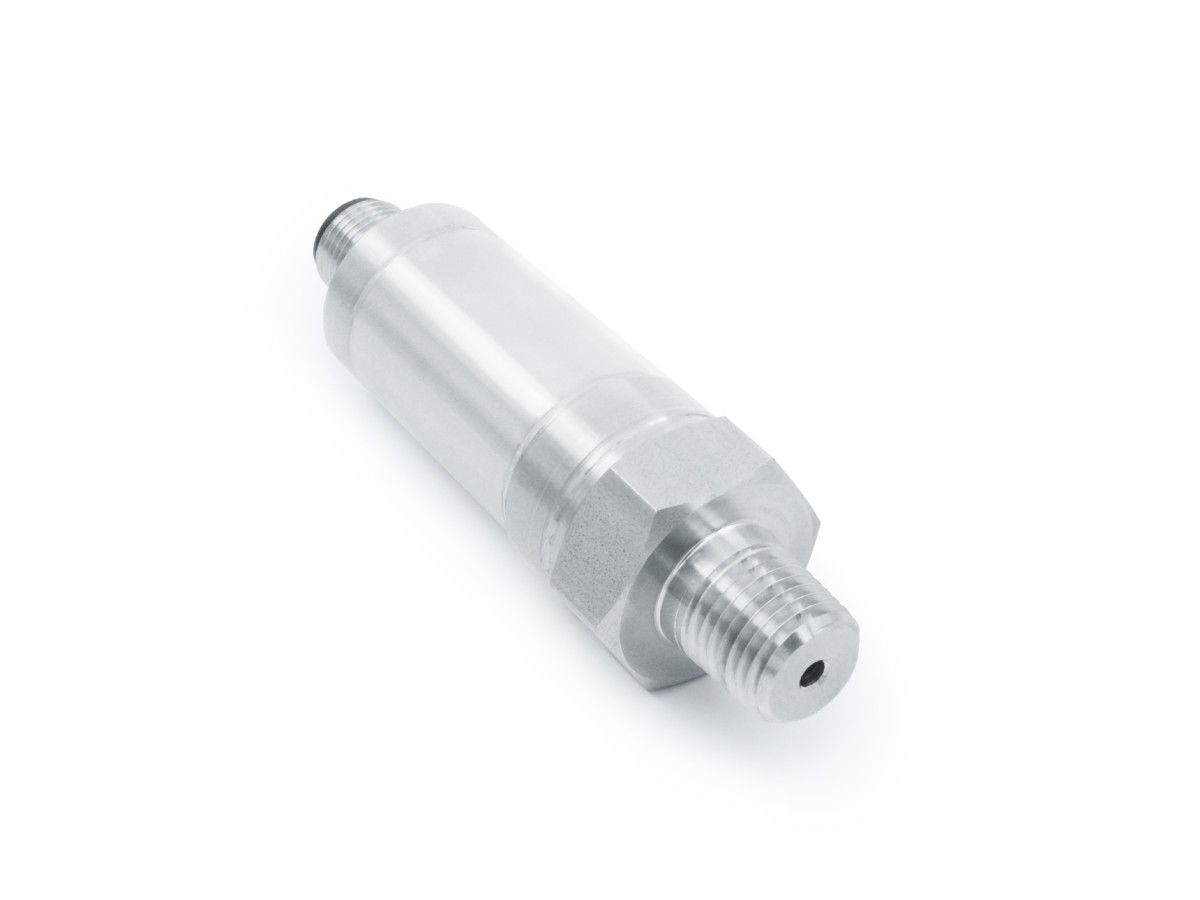

The 23SY-En-H2 series is characterized by its low embrittlement rate due to the increased nickel content in the stainless steel used. Thanks to a gold-plated diaphragm, H2 diffusion is reduced to a minimum.
The pressure transmitters are compensated across the entire temperature range and offer excellent long-term stability. They represent a reliable solution with a long service life, high accuracy, and safety to meet the requirements of demanding hydrogen applications.
Suitable for industrial applications in plant and mechanical engineering as well as in hydrogen technology with ATEX requirement Zone 2.
